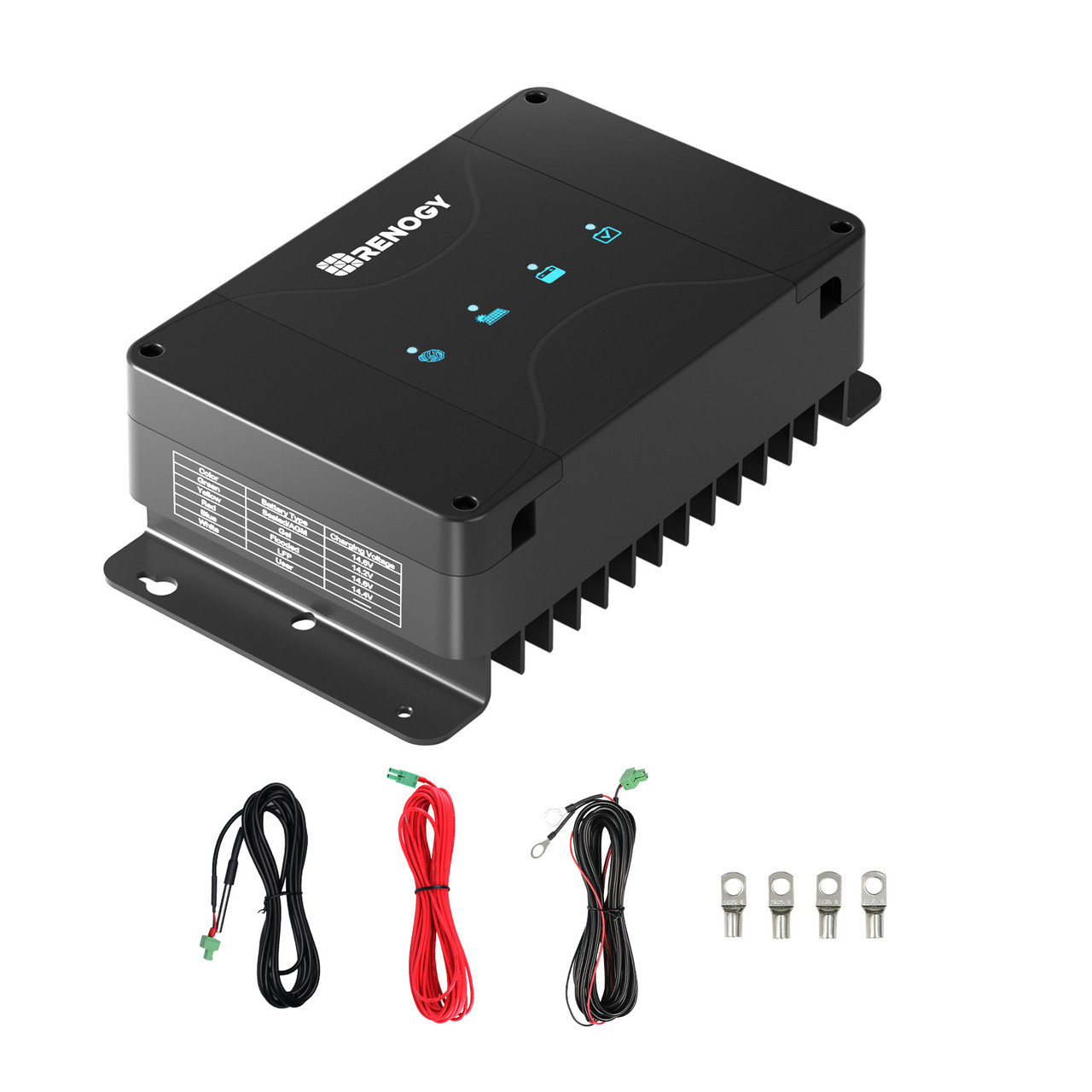

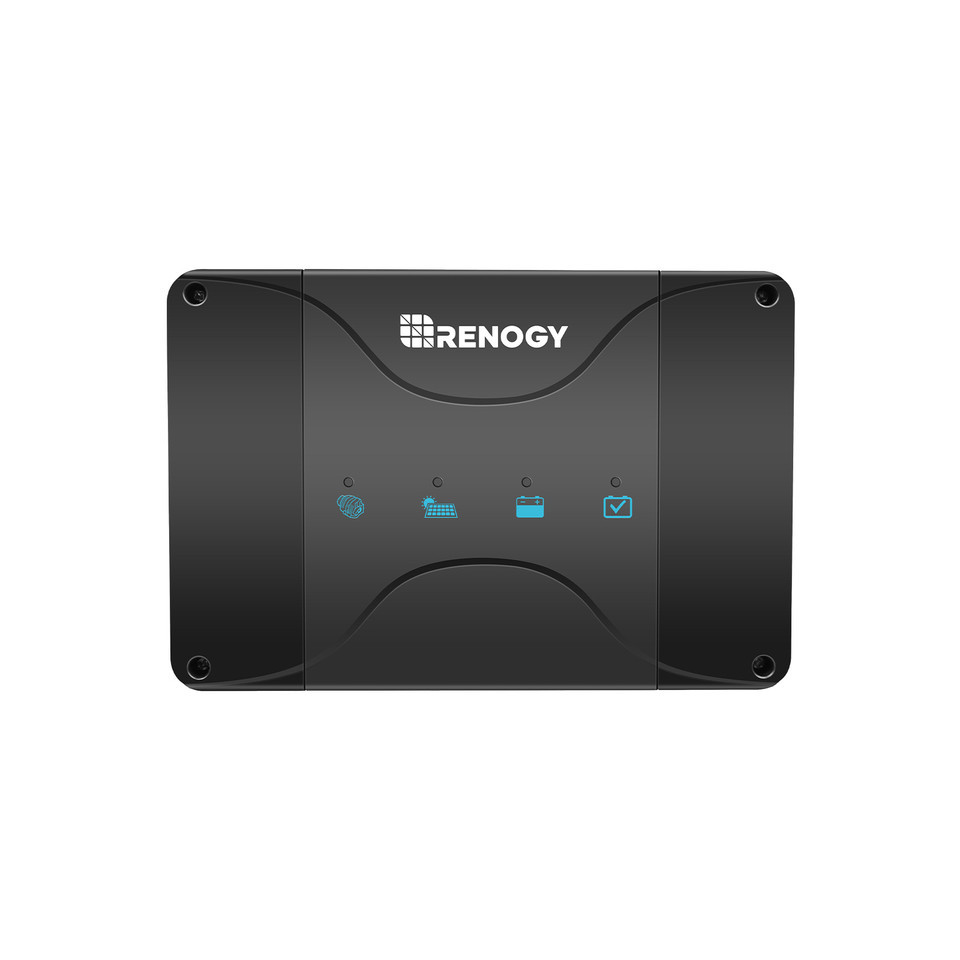

12V 30A Dual Input DC-DC On-Board Battery Charger with MPPT

This multi-stage charger with dual input options can charge a service battery from a starter battery linked to an alternator or by utilizing solar panels directly connected to the unit.

Description
Specification

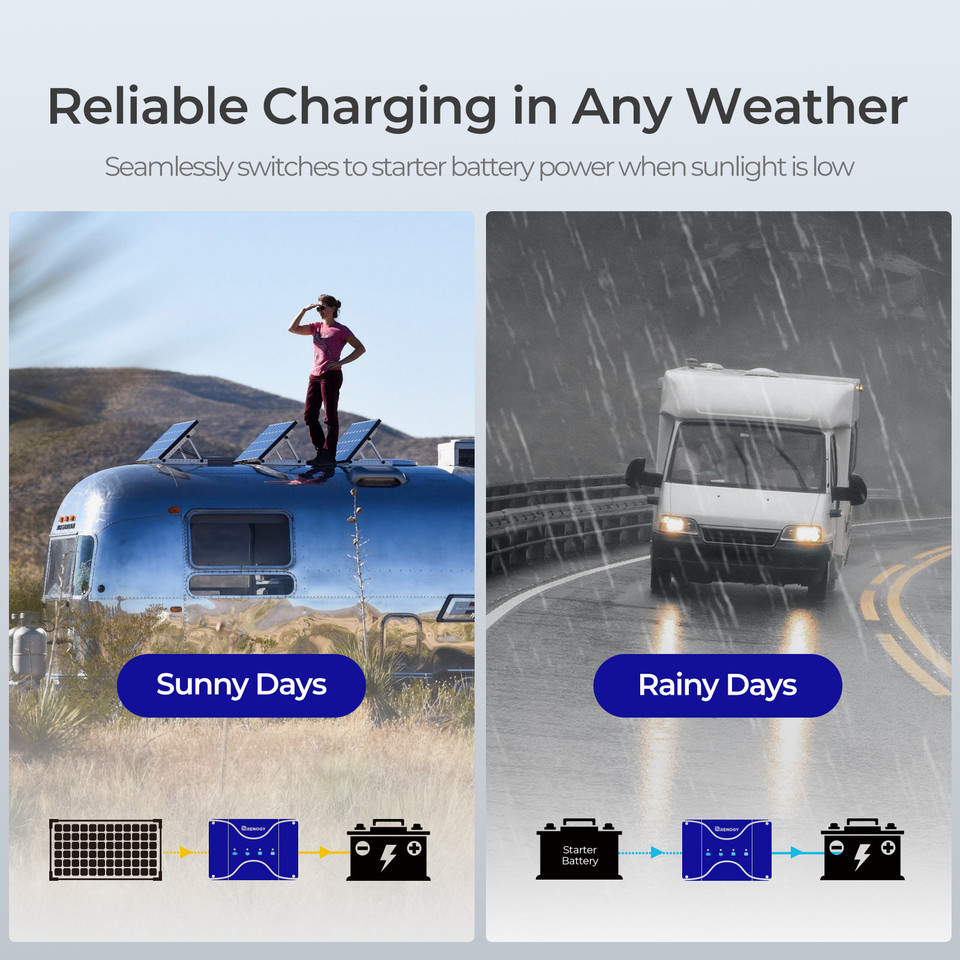

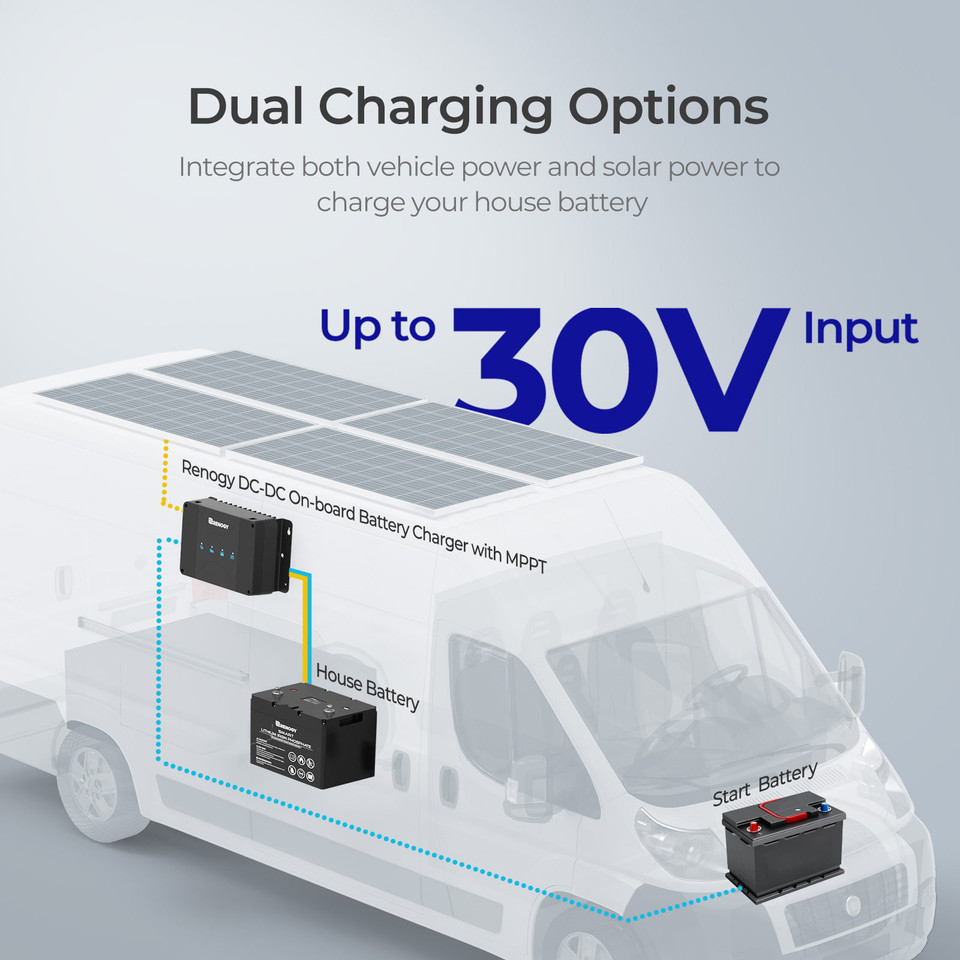

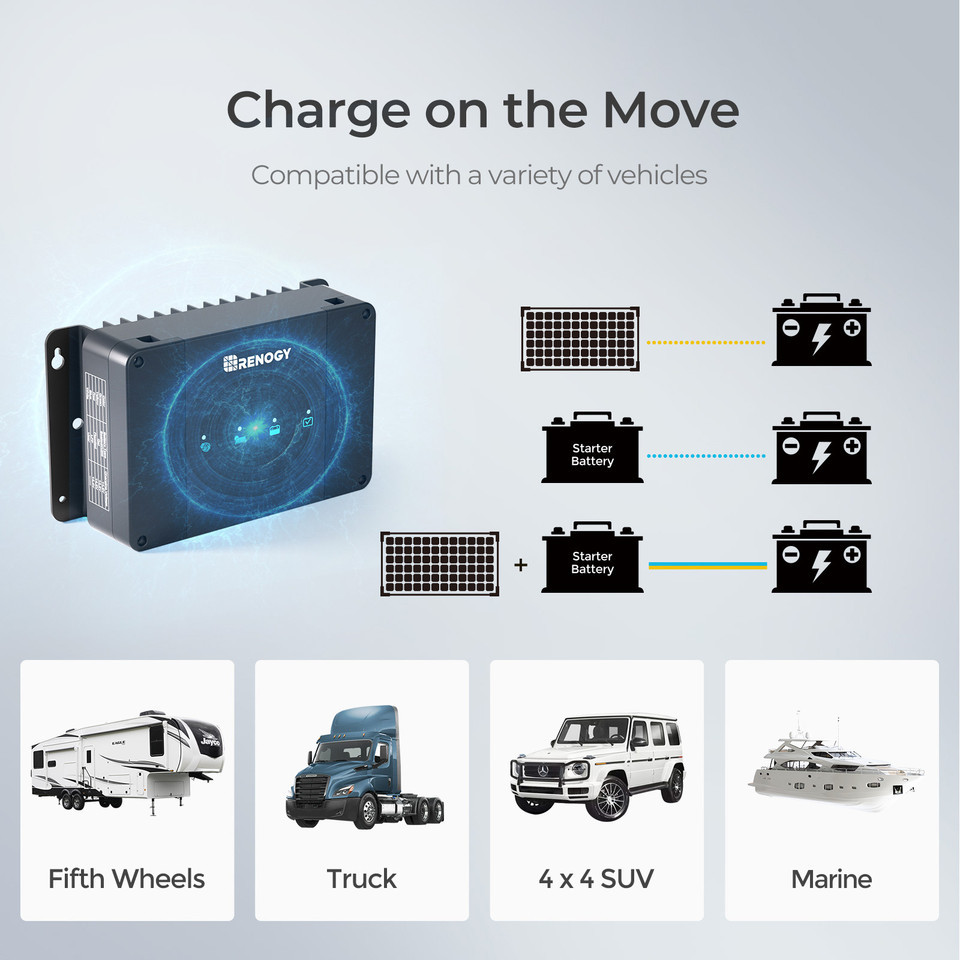

Multi-Input Efficiency Charging

The Renogy DC to DC Battery Charger features unique dual charging options. This multi-stage charger can charge the house battery either from a starter battery linked to an alternator or by utilizing solar panels directly connected to the unit, keeping your house battery ready for extended off-grid adventures.

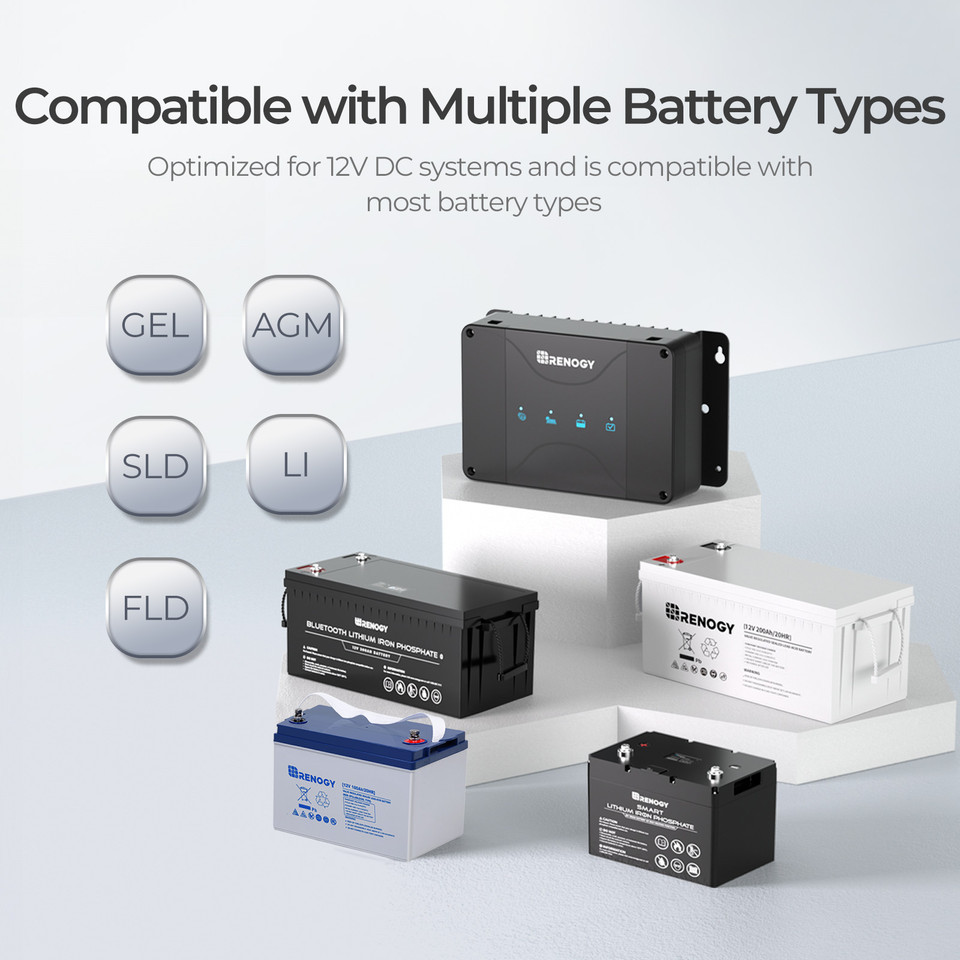

Versatile Compatibility

Designed to charge a variety of battery types, including flooded, gel, AGM, and lithium batteries, this charger supports a range of power systems.

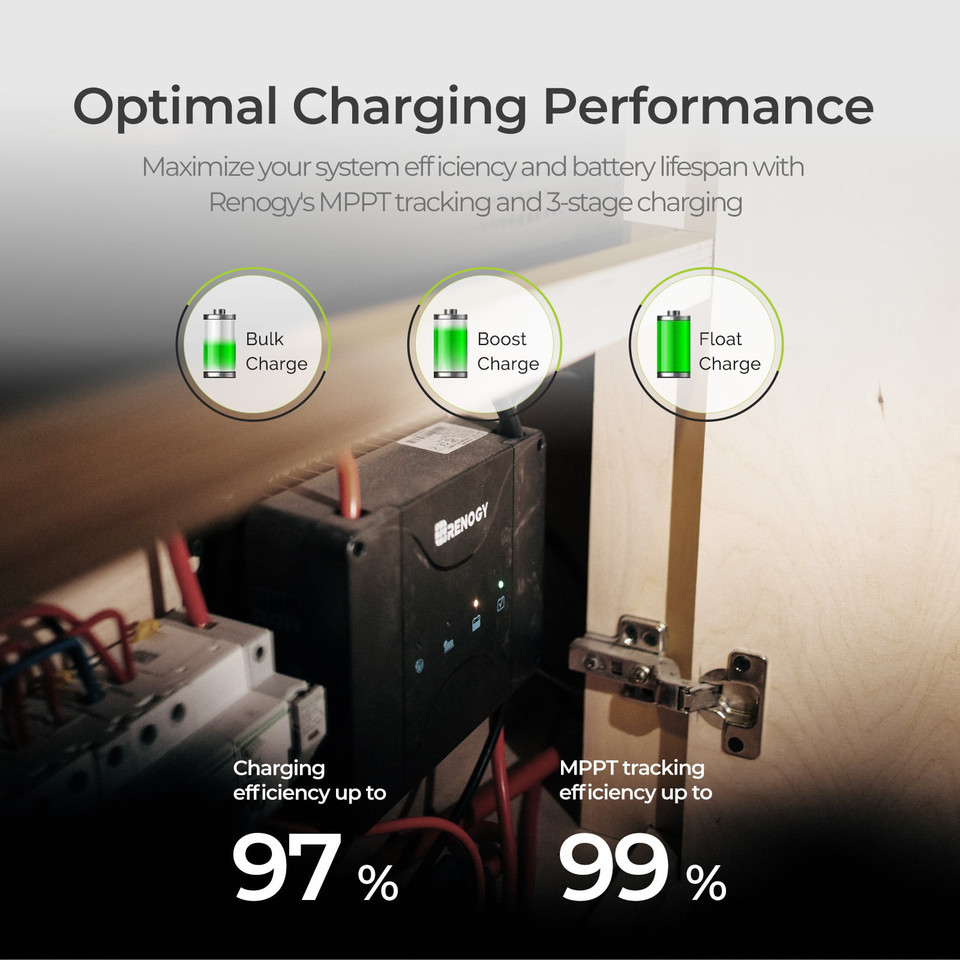

Advanced MPPT Technology

Optimizes solar charging with up to 99% efficiency, even for fully discharged batteries, ensuring maximum power harvesting throughout the day.

Robust Safety Protections

Equipped with multiple safety features such as undervoltage, overvoltage, overload, overtemperature, reverse current, reverse polarity, and short-circuit protection, protecting both the charger and the connected batteries.

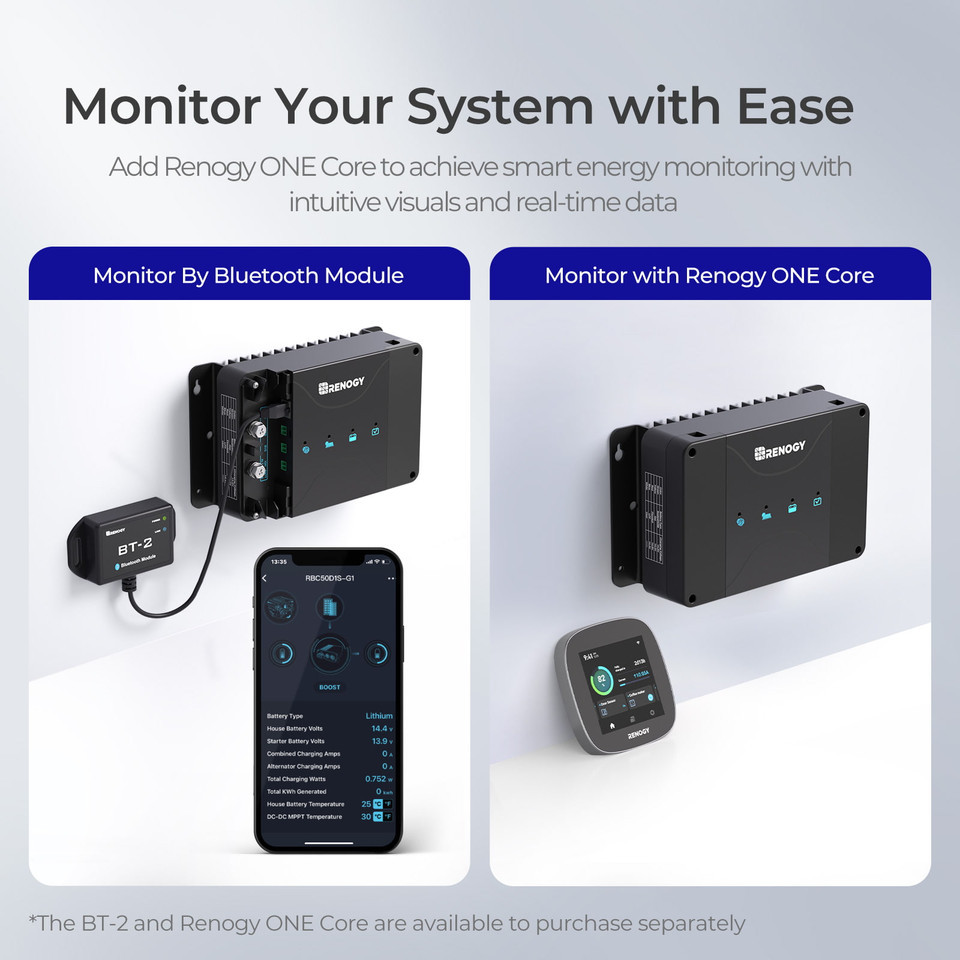

Remote Monitoring and Control

Use the RJ45 communication port with the BT-2 Bluetooth Module and Renogy DC Home App to monitor and control the charger in real time from your smartphone, offering enhanced convenience.

Specifications

-System Voltage: 12V DC
-Battery Voltage Range: 9–16V DC
-Max Charging Current: 30A
-Battery Types: AGM, Gel, Flooded, Lithium, User-defined
-Charging Mode: MPPT (for service battery)
-Charging Efficiency: 94%
-Max Solar Input Voltage: 30V
-Max Solar Input Power: 400W
-Alternator Voltage (Traditional): 13.2–16V DC
-Alternator Voltage (Smart – Euro 6): 12–16V DC
-Max Alternator Input Power: 400W
-Self-Consumption: 60mA
-Idle Power Use: <30mA
-Temperature Compensation (Non-Lithium): -3mV/°C/2V
-Temperature Compensation (Lithium): 0mV/°C/2V
-Ground Type: Negative
-Terminal Size: M8 x 1.25 – 10mm
-Cable Size Supported: 8–4 AWG
-Operating Temp: -35°C to +65°C
-Storage Temp: -40°C to +80°C
-Humidity: 0–95%, no condensation
-Dimensions: 244 × 146 × 77 mm
-Weight: 1.41 kg
-Communication: RS485
-Certifications: CE, ROHS, FCC Class B, ETL (UL 1741 & CSA C22.2)

241 €

I want to order installation services (+120 €)

We can install the product in your camper. Time of completion of works: 2 h.
