LED Rave-X 7 Inch AMBER High Beam | ECE certified

RAVE-X 7 Inch Driving Light with Orange AMBER Background Light

Description
Specification

Discover RAVE-X®, the powerful yet compact 160° sideshooter cube in 7" size. Approved for road use and offering exceptional light output, RAVE-X® is the top choice for applications requiring long-range illumination combined with maximum width coverage.

In addition to its aesthetic design, the series is functionally superior, with an aerodynamic shape that minimizes airflow and resistance even at high speeds.

With ECE Road Approval

-ECE R149 - Driving Light
-ECE R10 - Electromagnetic Compatibility
-OFFROAD - AMBER Background Light Orange

Features

-Water- and dustproof, shock-resistant
-Highest quality materials
-Compact size suitable for many applications
-Usable at ambient temperatures from -40° to +80°
-Certification for electromagnetic compatibility
-Reference number: 30

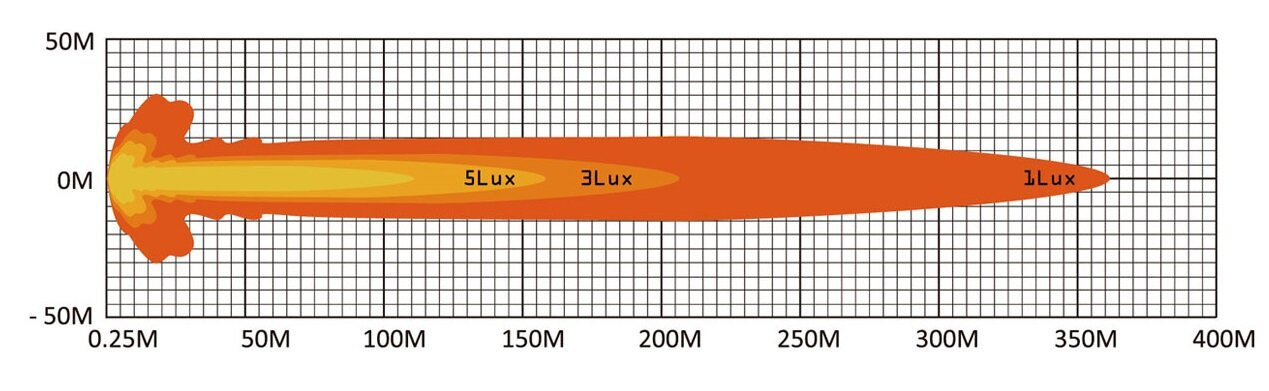

-Range: 360 m (1 Lux)

Technical Data

-Operating voltage: 9-33V DC
-Power consumption (12/24V):
Position light 3.5W/4.3W
High beam 75W/61W
-Housing: Aluminum ADC12
-Lens and reflector: Polycarbonate
-Bracket: Stainless steel
-Connection: Deutsch 3-pin
-ECE Homologation: R10 | R149
-LEDs: 22x High Power
-Light color: white
-Light intensity: 131,000 cd
-Protection class: IP69K
-Dimensions: 165 x 78.5 x 195 mm
-Beam Pattern: COMBO
-Lumen (raw): 7950lm
-LEDs: 15+7 High Power LEDs
-Color Temperature: 5000K
-Dimensions: 165 x 78.5 x 195mm
-Weight: 1.6kg
-Range: 360m (1Lux)

295 €

I want to order installation services (+120 €)

We can install the product in your camper. Time of completion of works: 2 h.
