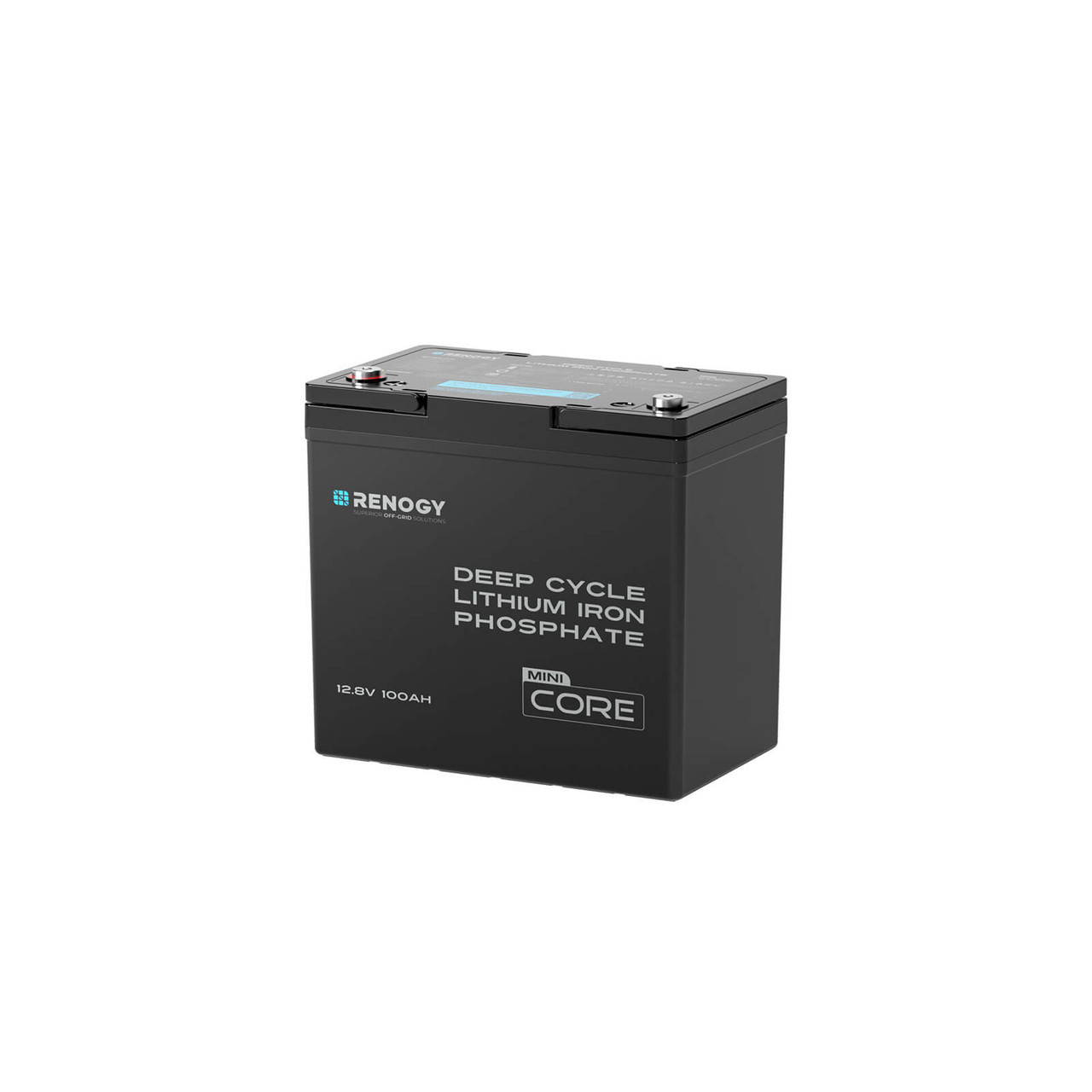

Core Mini - 12.8V 100Ah Lithium Iron Phosphate Battery

Discover Renogy's Smallest 12.8V 100Ah LiFePO4 Battery

-Renogy's smallest 12.8V 100Ah LiFePO4 battery (Group 22NF)
-Low-temperature cutoff for safer charging in freezing weather
-Compatible with the Renogy 300A Battery Shunt for remote monitoring.
-Mountable on its sides to fit in tight spaces.
-IP65-rated and vibration-resistant, designed for enhanced outdoor performance.

Specifications


-Battery Type: Lithium Iron Phosphate
-Nominal Voltage: 12.8V
-Rated Capacity: 100Ah (0.5C, 25℃)
-Voltage Range: 10V to 14.8V
-Maximum Charge Current: 100A
-Maximum Discharge Current: 100A
-Peak Discharge Current: 300A @ 5s
-Cycle Life (0.5C, 25℃): 5000 Cycles (80% DOD, 80% EOL)
-Charge Temperature Range: 32°F to 122°F (0°C to 50°C)
-Discharge Temperature Range: -4°F to 140°F (-20°C to 60°C)
-Storage Temperature Range: -13°F to 149°F (-25°C to 65°C)
-Operation Relative Humidity: 10% to 95%
-Connection Method: Series & Parallel (4S4P)
-Terminal Bolt Size: M8 x 1.25 x 12 mm
-Recommended Terminal Torque: 88.5 inch·lbs to 106.2 inch·lbs / 10 N·m to 12 N·m
-Protection Rating: IP65
-Dimensions: 9.02 x 5.43 x 8.39 in (229 x 138 x 213 mm)
-Weight: 21.8 lbs / 9.9 kg
-Accessories: Long Terminal Bolts (2) — 2 x M8 x 1.25 x 15 mm

228 €

We can install the product in your camper. Time of completion of works: 2 h.
