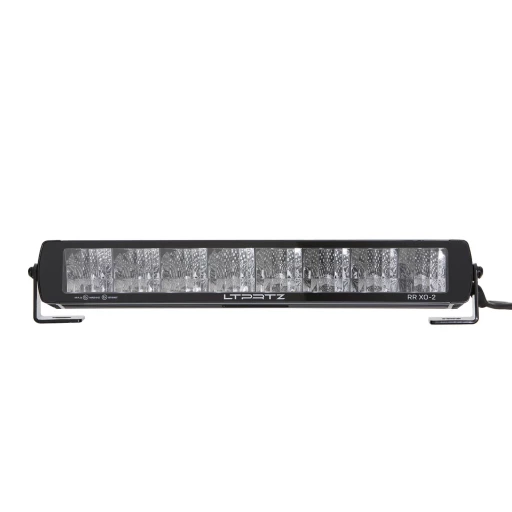

LED REAPER 20-Inch AMBER High Beam Lightbar | ECE certified

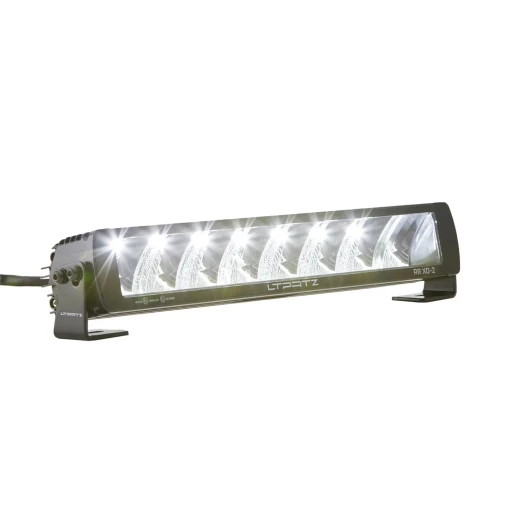

REAPER 20 Inch High Beam Lightbar With AMBER Backlight in Orange (Offroad Only) and White

Description
Specification

This compact high beam lightbar reaches nearly 500m in Full Power mode.
Switch to the Onroad mode and use the REAPER lightbar in pairs for ECE-compliant operation, enhancing your vehicle's high beams.
ECE-approved for road use without requiring additional registration.

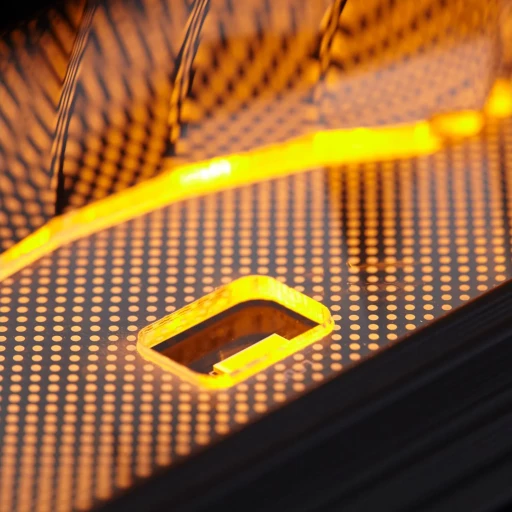

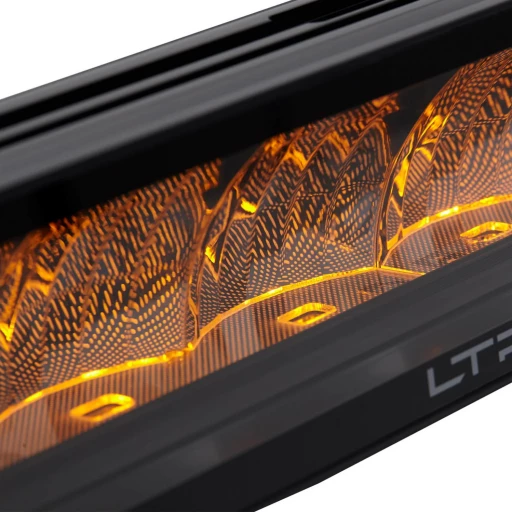

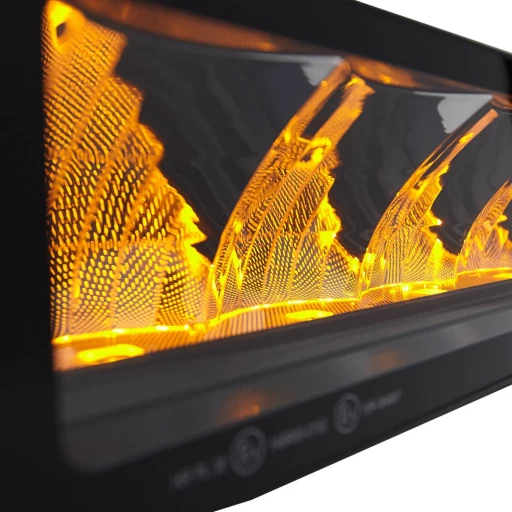

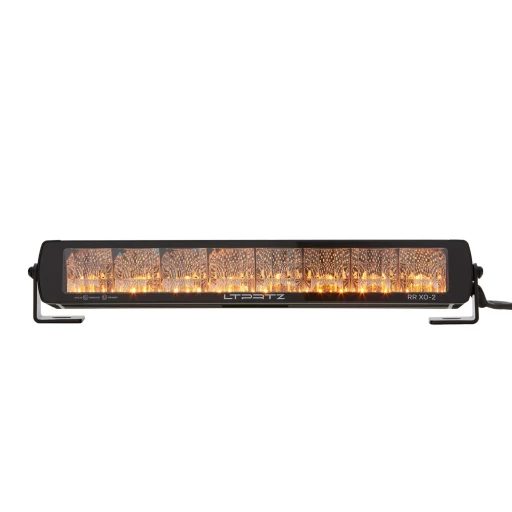

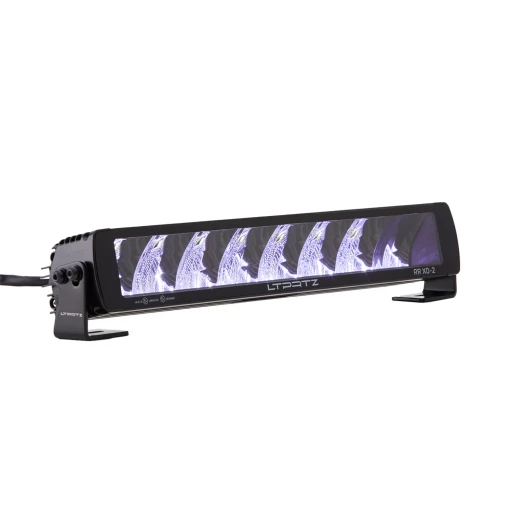

As a special feature for off-road enthusiasts, this lightbar offers orange and white AMBER backlighting.
And what looks good, performs even better.

Scope of Delivery

-1x REAPER 20 Inch High Beam Lightbar

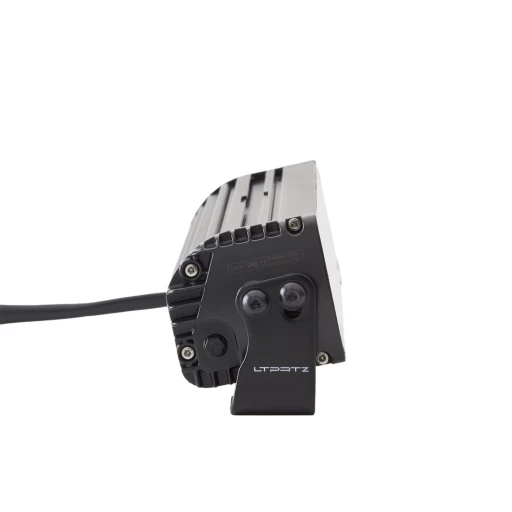

-1x Set of mounting hardware including:
-2x Rear adjustable brackets
-2x Side adjustable brackets

Technical Information

-Voltage Range: 9-36V
-Current Consumption (A) for High Beam at 13.2V (or 12V):
Full Power: 9.47A @12V
R112 (Ref. 30) Power: 2.0A@12V
-Power for High Beam at 13.2V (or 12V):
Full Power: 113.64W @12V
R112 (Ref. 30) Power: 24.0W@12V
-LED Type: Domestic: 5520
-Theoretical Lumen at 13.2V (or 12V):
Full Power: 4,200LM
R112 (Ref. 30) Power: 1,390LM
-Color Temperature for High Beam: 5500-6500K

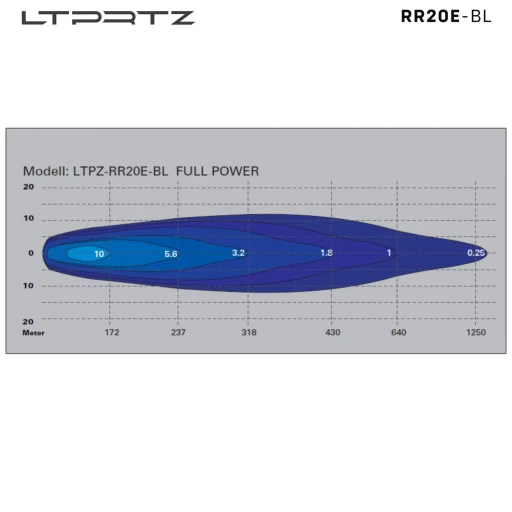

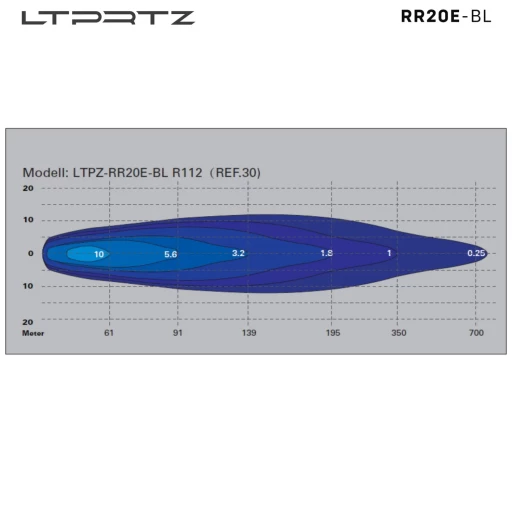

-Range (1 Lux) at 13.2V (or 12V):
Full Power: 640m
R112 (Ref. 30): 350m
-Candela at 13.2V (or 12V):
Full Power: 409,600
R112 (Ref. 30): 133,000

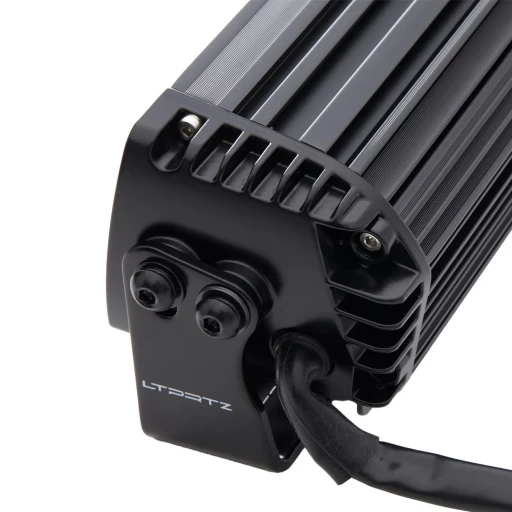

-Cable Length: 55cm
-Connector: DTP
-Ingress Protection: IP68

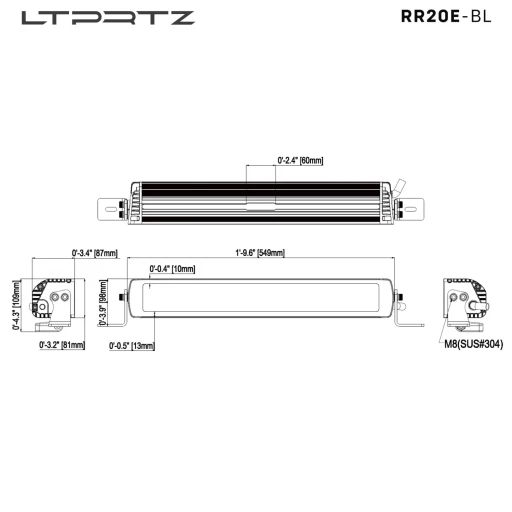

-Dimensions: 549x81x87mm
-AMBER Background Light Color: White, Orange
-Homologation: ECE R112 Ref. 30 | ECE R10

Wiring Diagram

-DT 4-Pin Connector. The corresponding plug is included:
Phase 1: Ground (-)
Phase 2: AMBER White (+)
Phase 3: AMBER Orange (+)
Phase 4: High Beam (+)
Phase 5: ECE Mode (blue separate wire)

295 €

I want to order installation services (+120 €)

We can install the product in your camper. Time of completion of works: 2 h.
